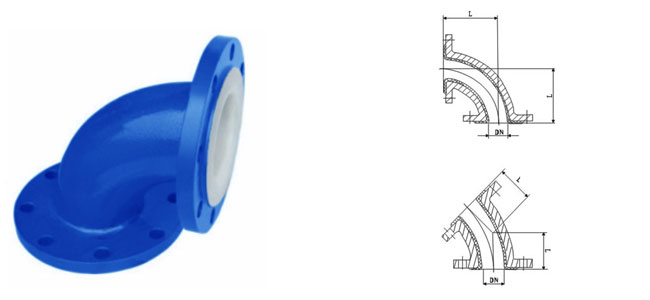

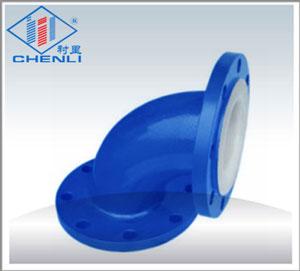

■90°衬里弯头Lining elbow
DN(mm) |
DN(Ln) |
L(mm) |
kg |
25 |
1″ |
98 |
2.7 |
32 |
11 /4″ |
108 |
3.2 |
40 |
11″/2″ |
115 |
4.3 |
50 |
2″ |
125 |
5.7 |
65 |
21/2″ |
137 |
6.8 |
80 |
3″ |
144 |
7.3 |
100 |
4″ |
156 |
9.1 |
125 |
5″ |
173 |
12.6 |
150 |
6″ |
191 |
18.5 |
200 |
8″ |
220 |
26.4 |
250 |
10″ |
257 |
36.2 |
300 |
12″ |
285 |
46.6 |
■45°衬里弯头Lining elbow
DN(mm) |
DN(Ln) |
L(mm) |
kg |
25 |
1″ |
62 |
2.5 |
32 |
11 /4″ |
65 |
3.4 |
40 |
11″/2″ |
63 |
3.6 |
50 |
2″ |
64 |
4.3 |
65 |
21/2″ |
71 |
6.1 |
80 |
3″ |
74 |
6.37 |
100 |
4″ |
85 |
8.3 |
125 |
5″ |
105 |
12.5 |
150 |
6″ |
123 |
17.8 |
200 |
8″ |
158 |
25.8 |
250 |
10″ |
195 |
41.7 |
300 |
12″ |
226 |
49.1 |
