公称压力(PN) |
GB/DIN/PN0.6,
1.6ANSU 150LB JIS 10K
|
波纹管 Corrugated pipe |
不锈钢 0Cr18Ni9Ti |
法兰尺寸 flange size |
JB78/JB79 HGT5010
ANSI B16.5JIS2212-2213
|
法兰 Flange |
碳钢 carbon steel Q235A WCB 不锈钢 stainless steel 1Cr18Ni9 |
压力实验 pressure test |
参照CB/T13927,API598 |
螺栓 bolt、螺母nut |
碳钢 carbon steel35,Cr17Ni2 不锈钢 stainless steel 1cr18Ni9 |
衬里层体验 lining layer tes |
电火花检查 EDM test |
衬里层材料 lining material |
聚四氯乙烯(PTFE) 聚氯乙烯(PVP) 聚丙烯(PP) 聚乙烯(PE) |

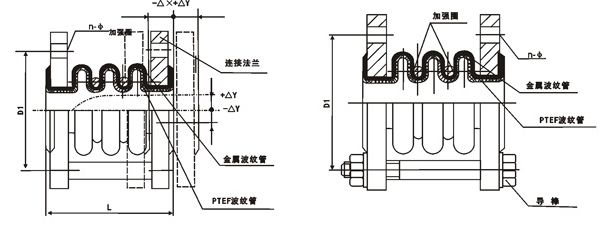

■ 主要连接尺寸及重量 main connection dimensions and weight
公称通径DN |
标准长度Full-length |
公称压力
Nominal
pressure
|
技术参数Technical parameters |
法兰Flange |
重量Weight |
||||||
DN(mm) |
NPS(in) |
L(mm) |
1.6 |
±△× (mm) |
±△× (mm) |
a |
D1(mm) |
Φ(mm) |
n |
kg |
|
40 |
11/2 |
75 |
3.5 |
1.5 |
14 |
110 |
18 |
4 |
6.9 |
||
50 |
2 |
82 |
4.5 |
1.5 |
12 |
125 |
18 |
4 |
9.2 |
||
65 |
21/2 |
90 |
5 |
1.5 |
10 |
145 |
18 |
4 |
12.5 |
||
80 |
3 |
100 |
6 |
2 |
12 |
160 |
18 |
8 |
16.2 |
||
100 |
4 |
110 |
4.6 |
1.8 |
5 |
180 |
18 |
8 |
19 |
||
150 |
6 |
120 |
4.4 |
1.6 |
5 |
240 |
23 |
8 |
28 |
||
200 |
8 |
140 |
8 |
1.2 |
5 |
295 |
23 |
12 |
38 |
||
25 |
10 |
140 |
7.5 |
1 |
5 |
355 |
25 |
12 |
58 |
||
300 |
12 |
160 |
8 |
1 |
5 |
410 |
25 |
12 |
76 |
||
350 |
14 |
160 |
8 |
1 |
5 |
470 |
25 |
16 |
96 |
||
400 |
16 |
180 |
8 |
0.8 |
4 |
525 |
30 |
16 |
118 |
||
450 |
18 |
180 |
8 |
0.7 |
3.5 |
585 |
30 |
20 |
144 |
||
500 |
20 |
200 |
8 |
0.7 |
3.2 |
650 |
34 |
20 |
204 |
||
600 |
24 |
240 |
13 |
1.8 |
4 |
770 |
41 |
20 |
263 |
||
700 |
28 |
240 |
0.6 |
24 |
1.6 |
7.2 |
810 |
25 |
24 |
173 |
|
800 |
32 |
260 |
24 |
2.2 |
6 |
920 |
30 |
24 |
212 |
||
900 |
36 |
260 |
23 |
1.9 |
5.2 |
1020 |
30 |
24 |
265 |
||
1000 |
40 |
260 |
22 |
1.6 |
4.8 |
1120 |
30 |
28 |
3.6 |
||
1200 |
48 |
260 |
0.25 |
38 |
2.4 |
6.8 |
1320 |
30 |
32 |
383 |
|
1400 |
56 |
260 |
37 |
2 |
5.6 |
1520 |
30 |
36 |
445 |
||
1600 |
64 |
260 |
36 |
1.7 |
4.8 |
1730 |
30 |
40 |
526 |
||
