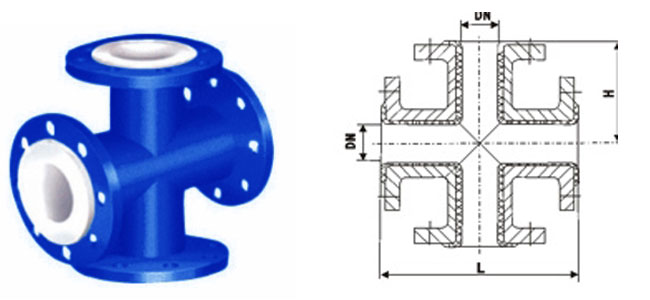

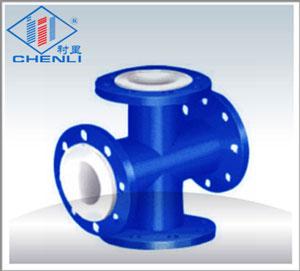

■ 等径四通Equal four-way pipe
公称通径DN |
L |
H |
参考重量
Reference weight
|
|
DN(mm) |
Nps(in) |
mm |
mm |
kg |
25 |
1 |
196 |
98 |
5.7 |
32 |
11/4 |
216 |
108 |
8.6 |
40 |
11/2 |
230 |
115 |
10.4 |
50 |
2 |
250 |
125 |
11.3 |
65 |
21/2 |
274 |
137 |
19 |
公称通径DN |
L |
H |
参考重量
Reference weight
|
|
DN(mm) |
Nps(in) |
mm |
mm |
kg |
80 |
3 |
288 |
144 |
25 |
100 |
4 |
312 |
156 |
28 |
125 |
5 |
346 |
173 |
40 |
150 |
6 |
382 |
191 |
53 |
200 |
8 |
440 |
220 |
81.5 |
250 |
10 |
514 |
257 |
131 |
300 |
12 |
570 |
285 |
165 |
